Hubs & Spindles
As a leading manufacturer of hubs and spindles, we supply our Hub Systems to all major manufacturers and OEM’s across North America and Europe.
- We constantly work to design and test products which are aligned to the latest equipment needs, including higher payload capability, increased speed, and lower vehicle weight. moveero manufactures a range of customizable hub systems for off-highway machinery, with capacities ranging from 500 lbs (227 kg) to 57,000 lbs (25,855 kg) in bolt patterns 4 to 20 bolts.
Assemblies can be delivered to the customer in a wide range of configurations to maximise installation efficiencies. For example, assemblies can be provided:
- with or without spindle
- with or without brake rotor mounting pads
- with bolt patterns and sizes which can be customised to meet the application and customer’s requirements
Large investment in manufacturing operations to improve product quality, machining capability, powder painting – best in class and warranties over recent years.
The moveero range covers an extensive range for a variety of applications and industries.
Straddle and standard designs are available with a range of bolt configurations. moveero hubs are all sold complete with bearings, seals, hub caps and nuts and can be supplied machined and cupped only or in assembled and greased hub and spindle units.

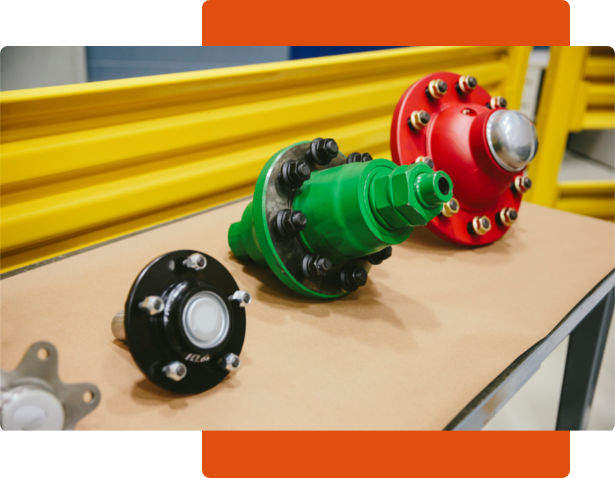

Wheel Hubs
- Used on trailed agricultural and construction equipment
- Capacity from 1,000 to 60,000 lbs
- Bolt circle pattern linked to capacity
- 4 to 24 bolt pattern
Straddle Hubs
- Mount to machine via both ends of spindle
- Largely used on planters
- Inner and outer bearings sized identically
- Capacity from 1,000 to 8,000 lbs
Coulter & Specialty Hubs – heavyduty, rotating assembly used in agriculture to attach a cutting disc (coulter) to tillage equipment or planters. It houses bearings, seals, and a spindle, allowing the disc to spin freely while slicing through soil, residue, and trash ahead of plowshares or seed opener.
- Used on coulters, hay rakes and other non wheeled applications
- Serviceable and non-serviceable options
- Track systems
- Various speed ratings
Cultivation: Straddle and standard designs are available with a range of bolt configurations. moveero hubs are all sold complete with bearings, seals, hub caps and nuts and can be supplied machined and cupped only or in assembled and greased hub and spindle units.
Find out more – Download our Hubs & Spindles catalogue
Working with customer’s design engineers in a collaborative way and leveraging its long standing North American Hub Systems design innovation, moveero provides its customers with a technical resource that includes design, engineering validation, and actual product testing.
moveero’s North American R&D and Test Facility, provides the highest assurance that customers will receive components and assemblies that exceed expectations.
Controlling the test load, spindle length, and test speed (to replicate the maximum bearing loads of the system under the most extreme conditions), means we can test high-capacity agricultural and construction hubs in-house, virtually eliminating the need for time-consuming field testing.
The ability to apply loads up to 100,000 lbs, makes this the largest machine of its kind in the world!
- 40” (1000 mm) bolt circle
- 8” (200 mm) spindle diameter
- 60” (1524 mm) spindle length
- 100,000 lbf (445 kN) input load
- 6,000,000 in-lbf (680 kNm) bending moment
- Variable speed up to 300 RPM
With a dedicated Test stand and engineers for our Hubs & Spindles products, we have the capability to validate the largest hubs now and future.
