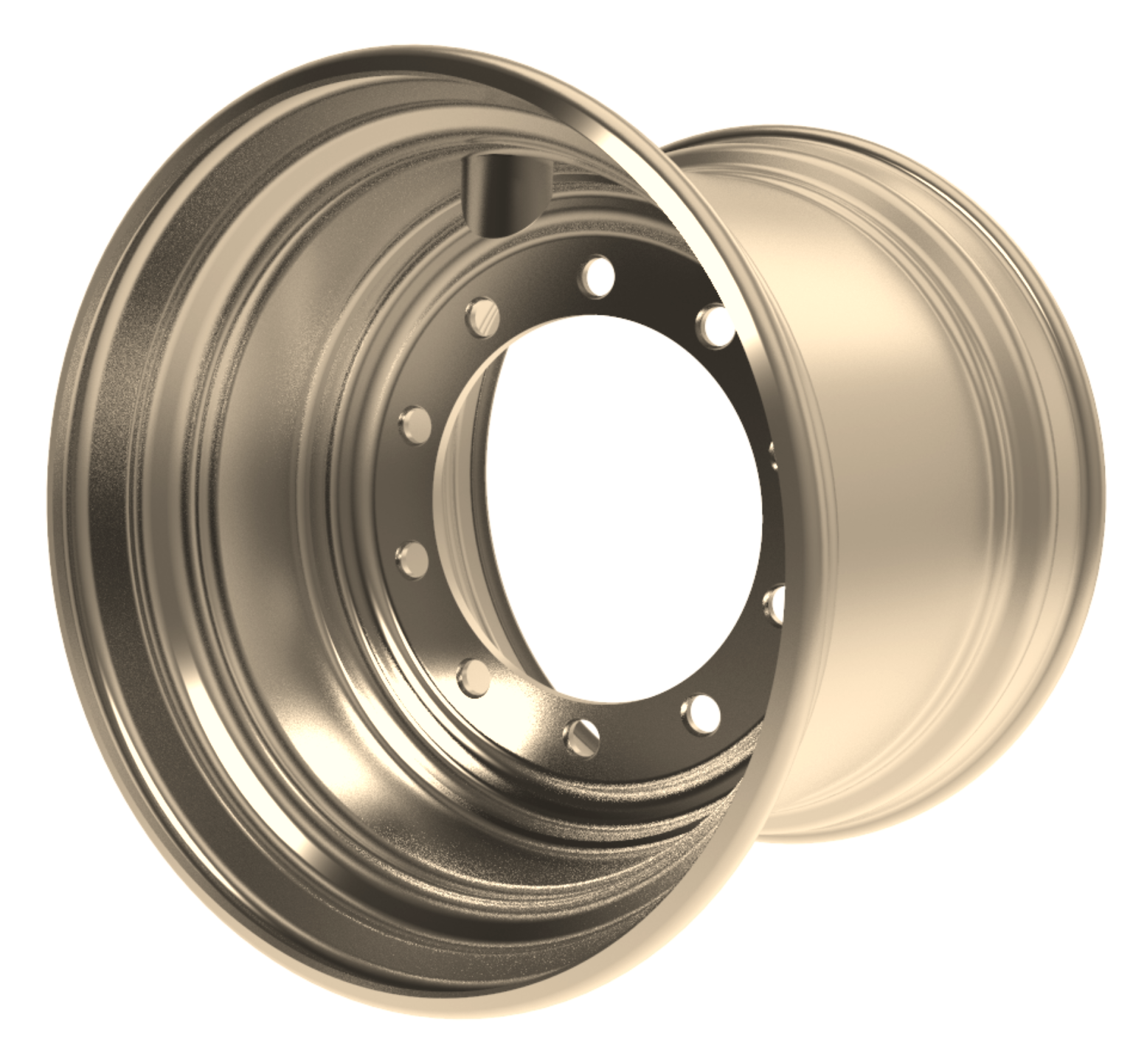

Profi-Fit

Designed by a global team of moveero engineers, the wheel combines durability with reduced weight and easier tire fitting, bringing benefits for both original equipment manufacturers and end users.  Low pressure tires are extensively used in agricultural applications in order to minimize the risk of soil compaction. However, these tires typically have stiffer walls, making them more difficult to fit. moveero developed Profi-Fit specifically to address this problem.

Detailed research has been undertaken using Finite Element Analysis and acquisition of stress data by use of strain gauged wheels. This has enabled moveero to develop a more structurally efficient rim profile with a 10% weight saving, whilst still achieving a 40% stress reduction in critical areas.




Technical details

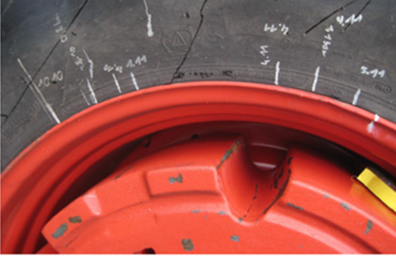

The Profi-Fit Wheel has a rolled over flange which improves rim strength and minimizes the risk of tire damage during fitting. It also had a specially angled section, more than double the TRA/ETRTO minimum of 15°. This greatly improves ease of tire bead seating during inflation and allows tires to be fitted at pressures below 2 bar.

Designed with a unique ‘double bump’ radius at a critical point where traditional rims are susceptible to ultimate fatigue failure reduces stress, whilst maintaining strength and performance.  The lower weight reduces vehicle group pressure and contributes to savings in fuel consumption and carbon emissions.  The typical application for a Profi-Fit rim includes combines, self-propelled forage harvesters and tractors. It is produced in the USA, Denmark and the UK.

Download our data sheet here for more information.

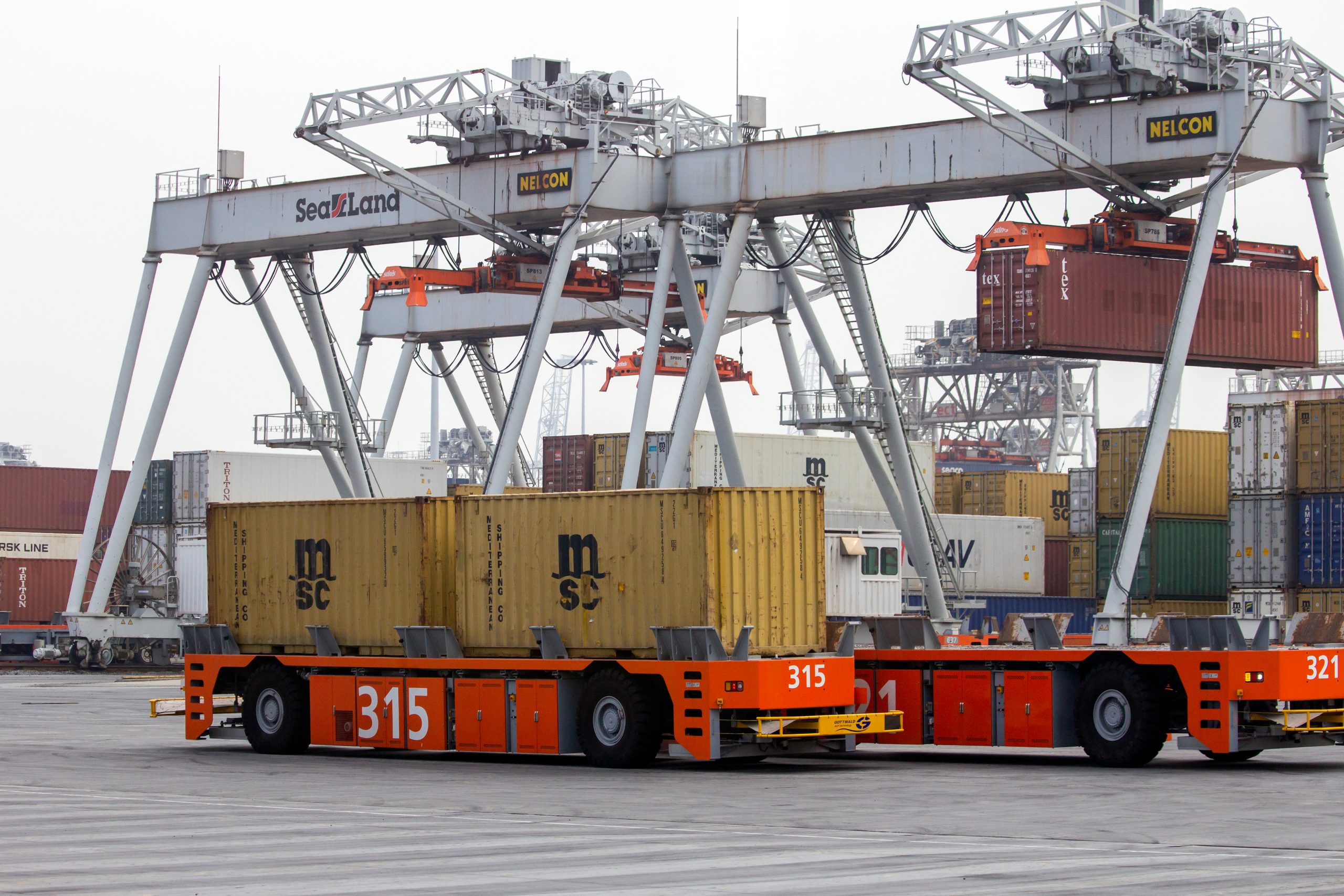

With the use of autonomous vehicles (AVs) in off-highway applications growing rapidly, the designs of a wide range of components,

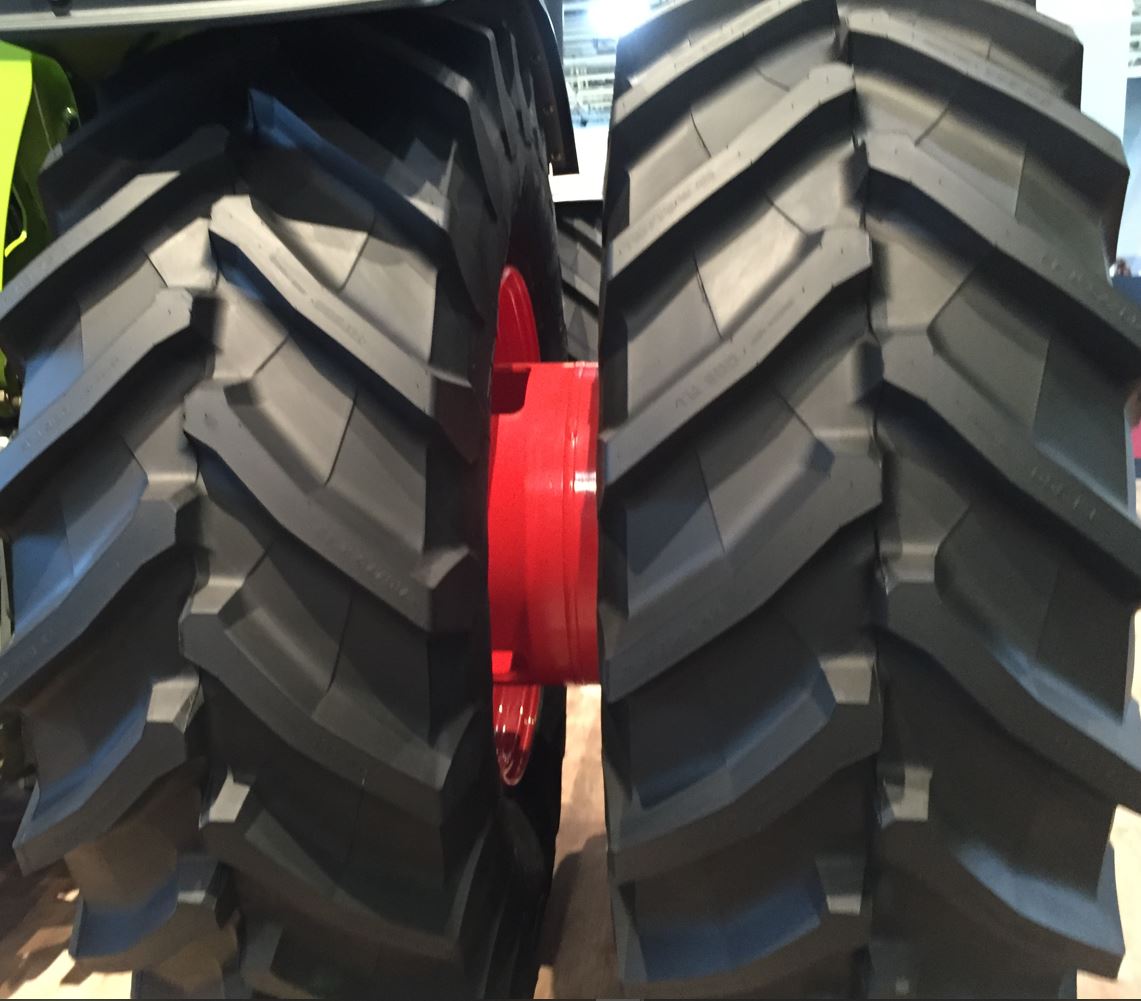

In agricultural applications which require a high pulling force from the tractor, for example when cultivating or ploughing, maximum engine

How, if at all, are or will wheel designs be impacted by electric and autonomous vehicles? It is clear that

Responsible for Product Managements, Ole Dall looks at how advances in wheel design and technology are delivering improved farm machinery

Challenge: Wheel failures in demanding environment “High number of working hours – heavy loads on wheels ….Robots don’t take breaks

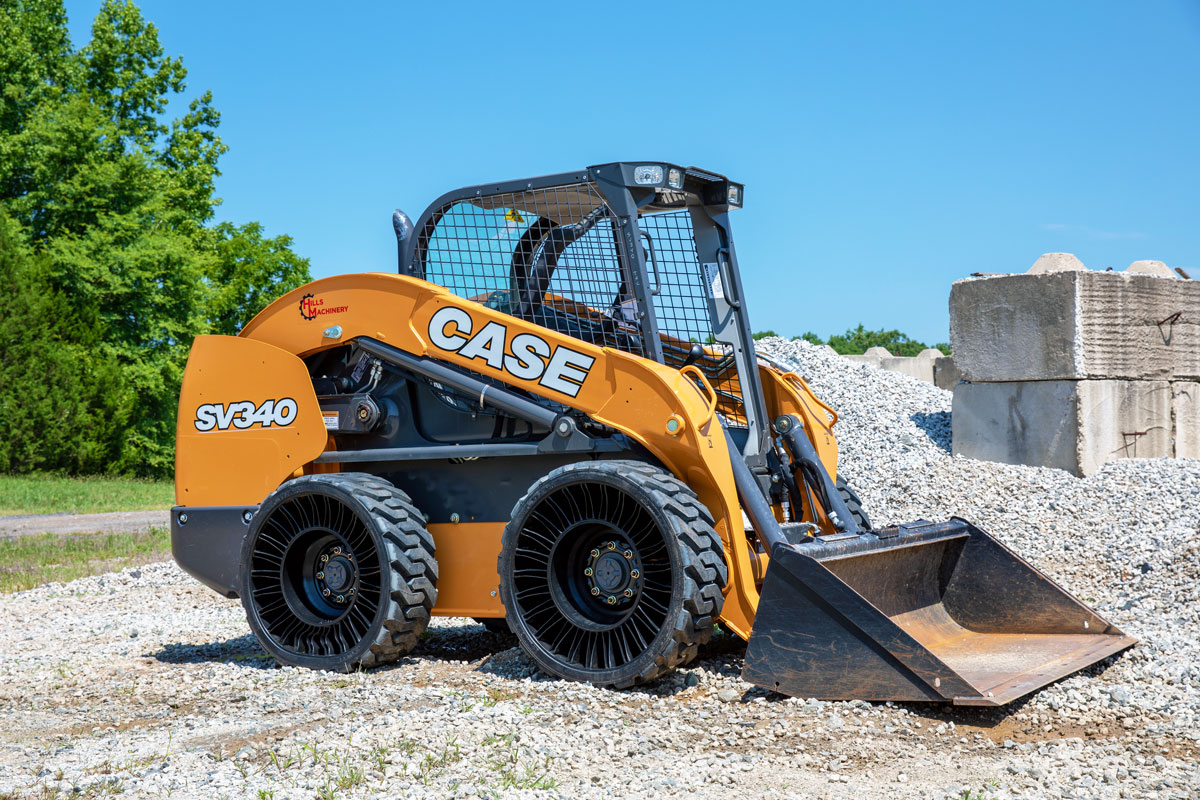

Unveiled at this year’s ‘Ag in Motion’ exhibition in Canada, Michelin’s new X Tweel SSL 2 system features a completely

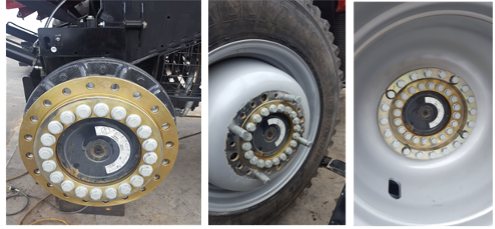

Hillside combines experiencing bolted joint failures on 95% of machines. Hillside combines are machinery designed to harvest crops

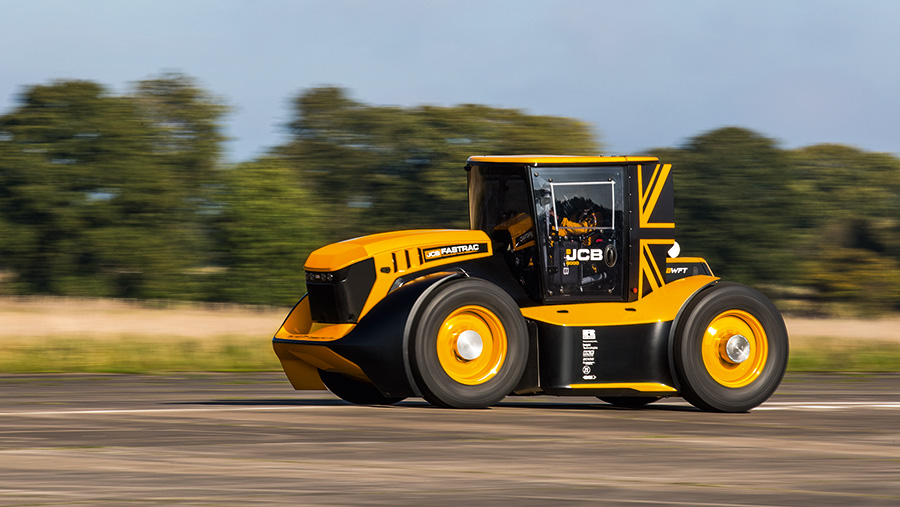

As the world-leader in off-highway wheel design and manufacture, the engineering team at moveero were one of the key partners
